In this section we will learn about the JSF 2 ui define tag.
JSF 2 ui define
In this section we will learn about the JSF 2 ui define tag.
<ui:define> tag of JSF ui tag library is used to define the contents and associate a name to the content. Using this tag the named content can be inserted within the template. This tag can be used inside the tags that are provided for templating for example, ui:composition, ui:component, ui:decorate, and ui:fragment. To insert, the contents on the template pages that are defined by this tag ui:insert tag can be used. In this case value of the name attribute of both tag on both pages should be same.
Attribute of JSF 2 ui define tag
- name : This is a required attribute of this tag. Value of this attribute is used to assign a name to the content which will be used by the corresponding ui:insert tag in the template.
Example :
This example demonstrates about the use of JSF 2 ui define tag. Here you will see that how a JSF facelet ui:define tag is used to define the contents. For this I have created using pages where inside the ui:composition tag I have defined the content using ui:defined tag and provided a name 'content'. These defined contents can be included in the template by using the ui:insert tag with the same value of name attribute that is specified in the ui:define tag on the using page. In this example we will make a little changes in these tags which will demonstrate how the value of 'name' attribute matters.

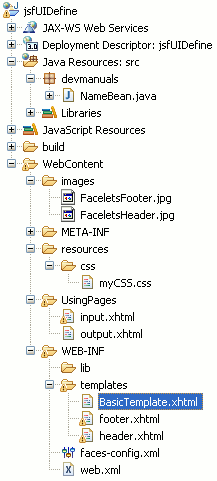

Directory Structure
NameBean.java
package devmanuals;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.RequestScoped;
@ManagedBean(name="nameBean")
@RequestScoped
public class NameBean {
String name;
String email;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
}
header.xhtml
<?xml version="1.0" encoding="ISO-8859-1" ?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:ui="http://java.sun.com/jsf/facelets" xmlns:h="http://java.sun.com/jsf/html" xmlns:f="http://java.sun.com/jsf/core"> <h:head> </h:head> <f:view> <h:body> <h:outputStylesheet library="css" name="myCSS.css" target="head" /> <h:panelGrid columns="1" styleClass="t1"> <h:graphicImage value="/images/FaceletsHeader.jpg" /> <h:dataTable value="" title="ui:composition tag example"> <h:column> <h:outputLink value="#home"> <h:outputText value="Home" /> </h:outputLink> </h:column> <h:column> <h:outputLink value="#about"> <h:outputText value="About Us" /> </h:outputLink> </h:column> <h:column> <h:outputLink value="#advertise"> <h:outputText value="Advertise" /> </h:outputLink> </h:column> </h:dataTable> </h:panelGrid> </h:body> </f:view> </html>
footer.xhtml
<?xml version="1.0" encoding="ISO-8859-1" ?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:ui="http://java.sun.com/jsf/facelets" xmlns:h="http://java.sun.com/jsf/html" xmlns:f="http://java.sun.com/jsf/core"> <h:head> </h:head> <f:view> <h:body> <h:outputStylesheet library="css" name="myCSS.css" target="head" /> <h:panelGrid columns="1" styleClass="t1"> <h:dataTable value="" title="ui:composition tag example"> <h:column> <h:outputLink value="#home"> <h:outputText value="Home" /> </h:outputLink> </h:column> <h:column> <h:outputLink value="#about"> <h:outputText value="About Us" /> </h:outputLink> </h:column> <h:column> <h:outputLink value="#privacy"> <h:outputText value="Privacy Policy" /> </h:outputLink> </h:column> </h:dataTable> <h:panelGroup> <h:graphicImage value="/images/FaceletsFooter.jpg" /> </h:panelGroup> </h:panelGrid> </h:body> </f:view> </html>
BasicTemplate.xhtml
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:ui="http://java.sun.com/jsf/facelets" xmlns:h="http://java.sun.com/jsf/html"> <h:head> <title><ui:insert name="title">JSF Facelets</ui:insert></title> </h:head> <body> <div id="header"> <ui:insert name="header"> <ui:include src="/WEB-INF/templates/header.xhtml" /> </ui:insert> </div> <div id="content"> <ui:insert name="content"> <!-- here you can include your content file like the below --> <!-- <div> --> <!-- <ui:include src="contentFileName.xhtml"/> --> <!-- </div> --> <!-- or in the using pages wherever this template will be called you will have to --> <!-- write your content inside the <ui:composition><ui:define> --> <!-- </ui:define></ui:composition> tag to show your content--> </ui:insert> </div> <div id="footer"> <ui:insert name="footer"> <ui:include src="/WEB-INF/templates/footer.xhtml" /> </ui:insert> </div> </body> </html>
myCSS.css
@CHARSET "ISO-8859-1";
table.t1
{
width:0px;
border:0px;
}
table.t1 td
{
margin:0;
padding:0;
overflow:hidden;
text-align:center;
}
a
{
color:#ffffff;
display:block;
width:181px;
background-color:#2f1e2b;
}
input.xhtml
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core">
<ui:composition template="/WEB-INF/templates/BasicTemplate.xhtml">
<ui:define name="content">
<h:form>
<h3>Enquiry Form</h3>
<table>
<tr>
<td><h:outputText value="Enter Your Name : " /></td>
<td><h:inputText value="#{nameBean.name}" /></td>
</tr>
<tr>
<td><h:outputText value="Enter Your e-mail : "/></td>
<td><h:inputText value="#{nameBean.email}"/></td>
</tr>
<tr>
<td></td>
<td><h:commandButton value="Submit" action="output"/></td>
</tr>
</table>
</h:form>
</ui:define>
</ui:composition>
</html>
output.xhtml
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core">
<ui:composition template="/WEB-INF/templates/BasicTemplate.xhtml">
<ui:define name="content">
<table>
<tr>
<td><h:outputText value="Your Name is :"/></td>
<td><h:outputText value="#{nameBean.name}"/></td>
</tr>
<tr>
<td><h:outputText value="Your email id is :" /></td>
<td><h:outputText value="#{nameBean.email}"/></td>
</tr>
</table>
<p><b>Thank You for visiting. We will shortly contact to you.</b></p>
</ui:define>
</ui:composition>
</html>
web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>jsfUIDefine</display-name> <welcome-file-list> <welcome-file>/UsingPages/input.xhtml</welcome-file> </welcome-file-list> <servlet> <servlet-name>Faces Servlet</servlet-name> <servlet-class>javax.faces.webapp.FacesServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>Faces Servlet</servlet-name> <url-pattern>/faces/*</url-pattern> <url-pattern>*.jsf</url-pattern> <url-pattern>*.xhtml</url-pattern> <url-pattern>*.jsp</url-pattern> </servlet-mapping> <context-param> <description>State saving method: 'client' or 'server' (=default). See JSF Specification 2.5.2</description> <param-name>javax.faces.STATE_SAVING_METHOD</param-name> <param-value>client</param-value> </context-param> <context-param> <param-name>javax.servlet.jsp.jstl.fmt.localizationContext</param-name> <param-value>resources.application</param-value> </context-param> <listener> <listener-class>com.sun.faces.config.ConfigureListener</listener-class> </listener> <servlet-mapping> <servlet-name>Faces Servlet</servlet-name> <url-pattern>*.faces</url-pattern> </servlet-mapping> </web-app>
How To execute this example
To execute this example you can download a WAR file example form Download Source Code and import this war file into your eclipse by File -> import -> web -> war file and simply execute this example by selecting the imported project as follows :- Select your project -> Right Click -> Run As -> Run On Server.
Output :
When this example will be executed successfully then the output will be as follows :

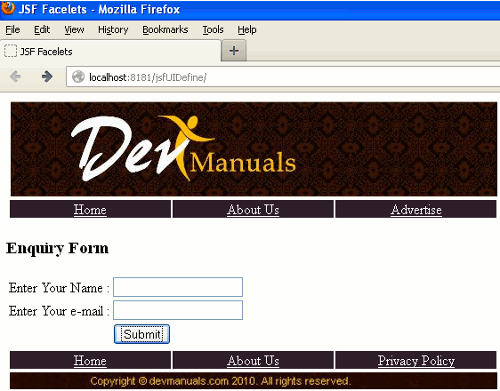

1. The main page will be look like as follows :

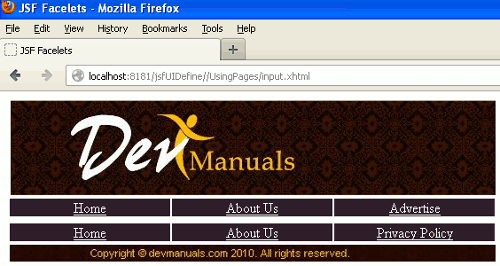

2. When you will make the changes into the value of name attribute in either of the tag i.e. ui:insert tag in BasicTemplate.xhtml file or ui:define tag in input.xhtml file then you will see that the contents are not displaying in the web page as follows :

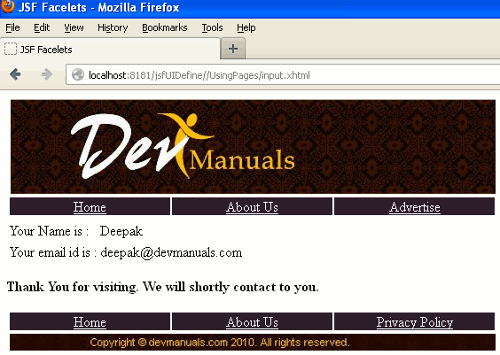

3. But in the right page i.e. in main page when you will click on the submit button after providing the value to the textboxes then the output will be as follows :
