In this tutorial you will learn about the JSF 2 composite implementation tag.
JSF 2 composite implementation
In this tutorial you will learn about the JSF 2 composite implementation tag.
<composite:implementation> tag of JSF composite tag library is used for implementing the composite component declared in the composite:interface. To access the components interface attributes an expression #{cc.attrs.attribute_name) is used ( cc is a reserved keyword in JSF). A corresponding <composite:implementation> tag will must be required in case of the <composite:interface> tag is used in the composite component page and in case the <composite:interface> tag is not used in the composite component page then the use of <composite:implementation> tag is optional.
No Attributes for JSF 2 composite implementation tag is defined.
Example
Here I am giving a simple example which will demonstrate you about how to use the JSF 2 composite implementation tag. In this example I have created to composite components one for the input (in.xhtml) and other for the output (out.xhtml). In both of the composite components you will see that I have used the <composite:interface> tag and the corresponding <composite:implementation> tag.

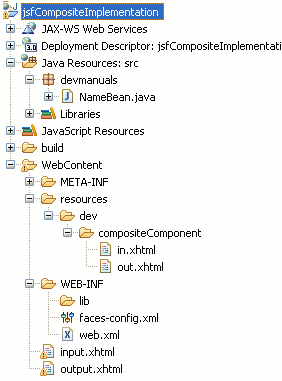

Directory Structure
NameBean.java
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:dOut="http://java.sun.com/jsf/composite/dev/compositeComponent"
>
<head>
<title>JSF 2 composite interface tag</title>
</head>
<h:body>
<h3>JSF 2 composite implementation Tag Example</h3>
<dOut:out
nmLbl="Your Name is "
nmVal="#{nameBean.name}"
/>
</h:body>
</html>
in.xhtml (cc file)
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core"
xmlns:composite="http://java.sun.com/jsf/composite"
>
<composite:interface>
<composite:attribute name="nmLbl" />
<composite:attribute name="nmVal" />
<composite:attribute name="submitBtnText" />
<composite:attribute name="submitBtnAction"
method-signature="java.lang.String action()" />
</composite:interface>
<composite:implementation>
<h:form>
<h:panelGrid columns="2" id="textPanel">
#{cc.attrs.nmLbl} :
<h:inputText id="name" value="#{cc.attrs.nmVal}" />
</h:panelGrid>
<h:commandButton action="#{cc.attrs.submitBtnAction}"
value="#{cc.attrs.submitBtnText}"
/>
</h:form>
</composite:implementation>
</html>
input.xhtml
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:dIn="http://java.sun.com/jsf/composite/dev/compositeComponent"
>
<h:body>
<h3>JSF 2 composite implementation Tag Example</h3>
<dIn:in
nmLbl="Enter Your Name"
nmVal="#{nameBean.name}"
submitBtnText="submit"
submitBtnAction="#{nameBean.submit}"
/>
</h:body>
</html>
out.xhtml (cc file)
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core"
xmlns:composite="http://java.sun.com/jsf/composite"
>
<composite:interface>
<composite:attribute name="nmLbl" />
<composite:attribute name="nmVal" />
</composite:interface>
<composite:implementation>
<h:panelGrid columns="2" id="textPanel">
#{cc.attrs.nmLbl} :
<h:outputText id="name" value="#{cc.attrs.nmVal}" />
</h:panelGrid>
</composite:implementation>
</html>
output.xhtml
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:dOut="http://java.sun.com/jsf/composite/dev/compositeComponent"
>
<head>
<title>JSF 2 composite interface tag</title>
</head>
<h:body>
<h3>JSF 2 composite implementation Tag Example</h3>
<dOut:out
nmLbl="Your Name is "
nmVal="#{nameBean.name}"
/>
</h:body>
</html>
web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>jsfCompositeImplementation</display-name> <welcome-file-list> <welcome-file>input.xhtml</welcome-file> </welcome-file-list> <servlet> <servlet-name>Faces Servlet</servlet-name> <servlet-class>javax.faces.webapp.FacesServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>Faces Servlet</servlet-name> <url-pattern>/faces/*</url-pattern> <url-pattern>*.jsf</url-pattern> <url-pattern>*.xhtml</url-pattern> </servlet-mapping> <context-param> <description>State saving method: 'client' or 'server' (=default). See JSF Specification 2.5.2</description> <param-name>javax.faces.STATE_SAVING_METHOD</param-name> <param-value>client</param-value> </context-param> <context-param> <param-name>javax.servlet.jsp.jstl.fmt.localizationContext</param-name> <param-value>resources.application</param-value> </context-param> <listener> <listener-class>com.sun.faces.config.ConfigureListener</listener-class> </listener> <servlet-mapping> <servlet-name>Faces Servlet</servlet-name> <url-pattern>*.faces</url-pattern> </servlet-mapping> </web-app>
How To execute this example
To execute this example you can download a WAR file example form here and import this war file into your eclipse by File -> import -> web -> war file and simply execute this example by selecting the imported project as follows :- Select your project -> Right Click -> Run As -> Run On Server.
Output :
When the above project will be executed successfully then the first page will be look like as follows :
The main page will look like as follows :

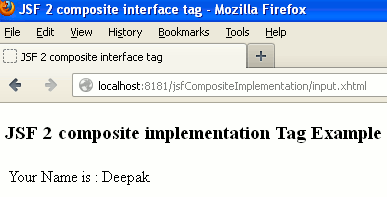

When you will enter the text into the textbox ( I have given the value "Deepak" ) and click on submit button then the output will be as follows :
