TreeView Example in ASP.NET using C#

In this article we will introduce with the TreeView control in ASP.NET using C#.

TreeView Example in ASP.NET using C#

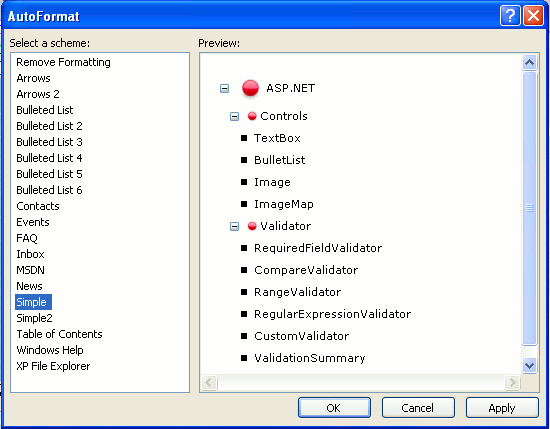

TreeView control in ASP.NET is used Navigation. TreeView control is a Navigation control. It supports a variety of programming models, from statically-defined trees, to dynamically constructed trees, to databound trees. You can bound the data with TreeView control by using SiteMapDataSource or XMLDataSource. It is rendered a tree view UI. In this example we use the SiteMapDataSource for bind the data with TreeView. You can see the following how can I use the AutoFormat for TreeView.

TreeView.aspx (Design Page):

Web.sitemap file:

<?xml version="1.0" encoding="utf-8" ?>
<siteMap xmlns="http://schemas.microsoft.com/AspNet/SiteMap-File-1.0" >
<siteMapNode url="http://www.devmanuals.com/" title="ASP.NET" description="ASP.NET Tutorials">
<siteMapNode url="http://www.devmanuals.com/tutorials/ms/aspdotnet/index.html" title="Controls" description="Standards Controls">
<siteMapNode url="~/TextBox.aspx" title="TextBox" description="TextBox Control"/>
<siteMapNode url="~/BulletList.aspx" title="BulletList" description="BulletList Control"/>
<siteMapNode url="~/Image.aspx" title="Image" description="Image Control"/>
<siteMapNode url="~/ImageMap.aspx" title="ImageMap" description="ImageMap Control"/>
</siteMapNode>
<siteMapNode url="http://www.devmanuals.com/tutorials/ms/aspdotnet/requiredfieldvalidator.html" title="Validator" description="Validation Controls">
<siteMapNode url="~/RequiredFieldValidator.aspx" title="RequiredFieldValidator" description="RequiredFieldValidator"/>
<siteMapNode url="~/CompareValidator.aspx" title="CompareValidator" description="CompareValidator"/>
<siteMapNode url="~/RangeValidator.aspx" title="RangeValidator" description="RangeValidator"/>
<siteMapNode url="~/RegularExpressionValidator.aspx" title="RegularExpressionValidator" description="RegularExpressionValidator"/>
<siteMapNode url="~/CustomValidator.aspx" title="CustomValidator" description="CustomValidator"/>
<siteMapNode url="~/ValidationSummary.aspx" title="ValidationSummary" description="ValidationSummary"/>
</siteMapNode>
</siteMapNode>
</siteMap>

TreeView.aspx (source code):

<%@ Page Title="" Language="C#" MasterPageFile="~/RoseindiaMaster.master" AutoEventWireup="true"
CodeFile="TreeView.aspx.cs" Inherits="TreeView" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="Server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="Server">
<div>
<h2 style="color: Green">
TreeView in ASP.NET 4, C#</h2>
<asp:TreeView ID="TreeView1" runat="server" ImageSet="Simple" DataSourceID="SiteMapDataSource1">
<HoverNodeStyle Font-Underline="True" ForeColor="#5555DD" />
<NodeStyle Font-Names="Tahoma" Font-Size="10pt" ForeColor="Black" HorizontalPadding="0px"
NodeSpacing="0px" VerticalPadding="0px" />
<ParentNodeStyle Font-Bold="False" ImageUrl="~/Images/bullet-red.png" />
<RootNodeStyle ImageUrl="~/Images/bullet.png" />
<SelectedNodeStyle Font-Underline="True" ForeColor="#5555DD" HorizontalPadding="0px"
VerticalPadding="0px" />
</asp:TreeView>
<asp:SiteMapDataSource ID="SiteMapDataSource1" runat="server" />
<br />
</div>
</asp:Content>

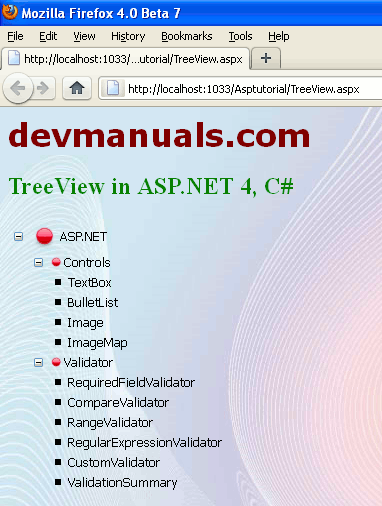

Output:
